K52M
- 5 LED Random Sequence Flasher
Very small Chip-On-Board PCB just
15mm x 8mm. 3V supply. 5 LEDs flash in sequence. Push-on switch toggles the
flashing sequence on. A second push is required to turn the flashing sequence
off. Ideal for model railways. Tape up two 1.5V button cells with the PCB. Spare
COB PCB supplied. Good introduction to the electronics in today's toys and games.
Motherboard supplied to mount all components.
K163
- 12V DC Xenon Strobe
A simple kit to trigger a high voltage
xenon flashtube using a 12VDC supply. The flash rate can be varied between 1
and 2 flashes per second using an onboard potentiometer. Component value changes
can move the flash rate range faster or slower.
Uses a sidac instead of a neon tube to trigger
the flash. The sidac is a bi-directional voltage triggered switch. Some characteristics
of this device include a normal 95 to 330 volt switching point, negative resistance
range, latching characteristics at turn-on and a low on-state voltage drop.
One cycle surge current capability up to 20 amps makes the sidac an ideal product
for dumping charged capacitors through an inductor in order to generate high-voltage
pulses. Applications include light controls, high-pressure sodium lamp starters,
power oscillators and high-voltage power supplies.
K169

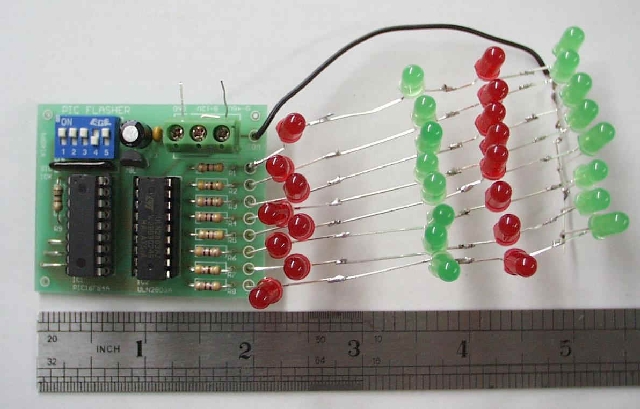

- Versatile PIC Flasher ![]()
Enhance your Christmas decorations
or simply brighten your childrens' bedroom ceiling with this versatile PIC-powered
flasher display. Creates a number of different effects and powers up to eight
channels of LEDs or miniature low voltage filament bulbs. Can be added to almost
any Christmas decoration or make your own design. Safe low voltage operation
from a suitable mains adaptor.
This kit can be used to flash from 1 to 176 LEDs. The kit is supplied with 8 superbright red LEDs and 8 green LEDs. The LEDs can be arranged in any pattern as required. The board produces a random pattern and uses an onboard DIP switch to select speed (fast, medium fast, medium slow, slow), modulation (100%, 50%, 25%, 12.5%) and profile (smooth, flash).
This kit is based on the Versatile PIC Flasher by Steve Challinor, EPE Magazine, December 2002. The design has been modifed to use a 2803A driver chip instead of all the transistor/resistor combinations in the original. This not only allows for quicker and easier construction but even more LEDs than the original circuit. The PIC source code and HEX file is available here (ZIP file).
K191
- 3 Channel RGB LED Controller
This kit is a versatile
LED control module. It provides 3 high current channels to create light effects
for presentations, parties, etc. The module includes preprogrammed light sequences
and can be used as a standalone LED controller.A simple command set allows easy
module control via a serial interface to your microcontroller or PC. Ideal for
use with flexible LED light strips.
Windows software provides module control from a PC and and is used to create
custom user-editable sequences. Use a USB-to-Serial converter or straight-through
9-way serial cable to connect the LED controller to a PC.
Key Features

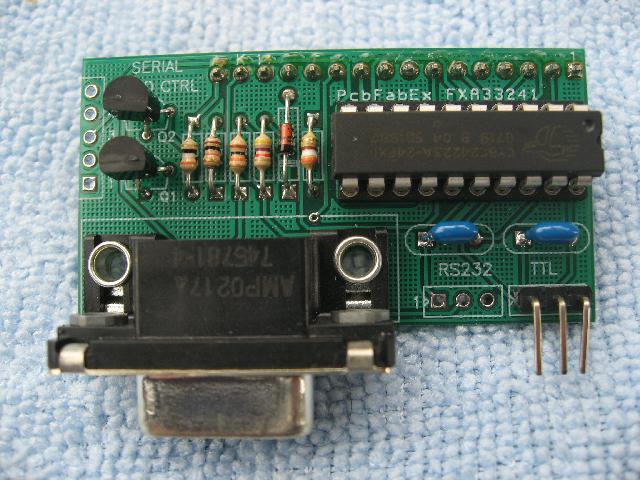

Specifications Operating Voltage 12VDC (nominal) Channel Current 5A max, 12A max for all 3 channels LED PWM frequency 480Hz LED intensity control 250 intensity levels/channel Comms Interface Serial RS232 and TTL, 9600 baud, 8N1, no handshakingK192 - Serial LCD Controller
The LCD backlight and contrast
may be adjusted under program control to compensate for differing lighting conditions
and viewing angles.
NOTE: The supplied
LCD does not have backlighting. User must supply a backlit LCD if this feature
is required.
The module supports 2 interfaces:
Serial RS232 interface
Serial TTL interface
The module has the
following features:
Communicates over serial interface with software controlled speed
32 Byte buffer for messages received via communication interface
Up to 8 custom characters can be defined
Built in commands for drawing bar graphs
LCD Backlighting controlled via software, has 254 brightness levels
LCD Contrast controlled via software, has 254 contrast levels
4 digital outputs
Save the basic settings in module internal EEPROM
A simple Windows control program is provided to enable manual setting of each of the features of the module. It allows the user to quickly test the module and get an idea of how each feature looks and works.
